A centrifugal pump consists of three main parts: the impeller, which spins rapidly to convert rotational energy into kinetic energy; the volute, a spiral casing that collects and converts velocity into pressure; and the seal, which prevents fluid leaks along the shaft. Each component works together to guarantee efficient fluid transfer and peak performance. Understanding how these parts interact helps you keep the pump running smoothly—there’s more to discover about their specific roles and maintenance.
Key Takeaways
- The impeller converts rotational energy into kinetic energy, pushing fluid outward through blades or vanes.
- The volute surrounds the impeller, collecting high-velocity fluid and transforming it into pressure energy.
- The seal prevents fluid leakage along the shaft passing through the pump casing, maintaining system integrity.
- Proper maintenance of the impeller, volute, and seal is essential for optimal pump efficiency and reliability.
- Understanding each component’s role aids in troubleshooting and ensuring continuous, efficient fluid transfer.
A centrifugal pump is a pivotal machine used to move fluids efficiently by converting rotational energy into kinetic energy. When you operate or troubleshoot this equipment, understanding its main components—the volute, impeller, and seal—becomes essential. Each part plays a critical role in ensuring the pump functions smoothly and reliably.
Understanding the main components of a centrifugal pump ensures efficient operation and troubleshooting success.

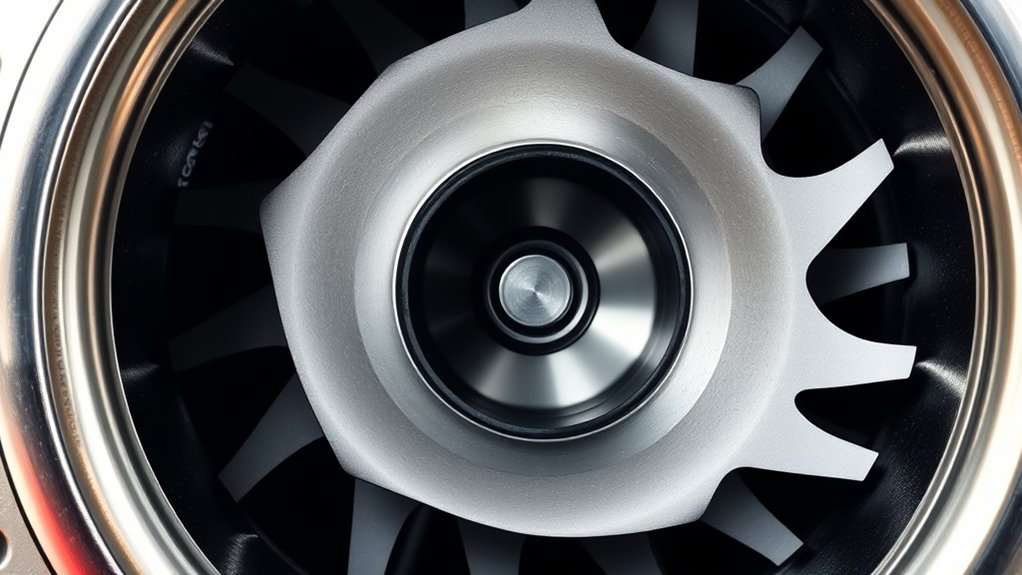

The impeller is the heart of the pump. It consists of blades or vanes that spin rapidly when driven by a motor. As you start the pump, the impeller’s rotation creates a centrifugal force that pushes fluid outward from the center of rotation. This action increases the fluid’s velocity and kinetic energy. The shape and design of the impeller influence how much energy is transferred to the fluid, affecting both flow rate and pressure. When you choose or maintain a pump, selecting the right impeller type—whether open, closed, or semi-open—can maximize performance for your specific application. Regular inspection of the impeller for signs of wear, corrosion, or damage helps maintain efficiency and prevents unexpected failures.
Surrounding the impeller is the volute, a spiral-shaped casing that collects the high-velocity fluid ejected by the impeller. Its design is pivotal because it converts the kinetic energy of the fluid into pressure energy. As the fluid moves through the volute, its velocity decreases, and pressure increases, enabling the fluid to be directed into the discharge pipe. When you monitor or service the pump, paying attention to the volute’s condition is essential. Any buildup of debris or corrosion can disrupt flow patterns, causing vibrations or reducing efficiency. Properly maintaining the volute ensures the pressure head remains steady and the pump operates at maximum capacity.
The seal is another critical component that keeps the pump leak-free, especially when handling hazardous or sensitive fluids. It prevents the fluid from escaping along the shaft where it passes through the pump casing. When you work with seals—whether mechanical or gland types—it’s important to check for leaks, vibration, or wear regularly. A failing seal can lead to fluid loss, contamination, or damage to other parts of the pump. Proper sealing not only prolongs the lifespan of the pump but also maintains safety and environmental standards.
In essence, understanding how the impeller, volute, and seal work together helps you operate and maintain a centrifugal pump more effectively. Each component contributes to the overall efficiency and reliability of the system. When you pay close attention to their condition and function, you guarantee the pump continues to perform its essential role in fluid transfer, whether in industrial, municipal, or commercial applications.
Frequently Asked Questions
How Does the Volute Shape Affect Pump Efficiency?
The shape of the volute directly impacts your pump’s efficiency by smoothly converting the impeller’s kinetic energy into pressure energy. A well-designed, spiral-shaped volute minimizes turbulence and flow losses, ensuring that more energy is directed toward moving fluid efficiently. If the volute’s shape isn’t optimized, you’ll see increased energy consumption and reduced performance, making the pump less effective and more costly to operate.
What Materials Are Best for Pump Seals?
You should choose pump seals made from durable, corrosion-resistant materials like silicon carbide, carbon, or ceramic. These materials withstand harsh chemicals, high temperatures, and pressure fluctuations, ensuring a long-lasting seal. For highly abrasive or aggressive fluids, consider seals with special coatings or composite materials. Regular maintenance and proper installation also help extend seal life, preventing leaks and ensuring your pump runs smoothly.
How Often Should Impellers Be Inspected or Replaced?
You should inspect your impeller every 6 to 12 months and replace it when you notice signs of wear, corrosion, or damage. Regular inspections help catch issues early, preventing costly breakdowns. If the impeller shows significant erosion, cracks, or imbalance, replace it promptly. Maintaining a consistent schedule guarantees your pump runs efficiently, extends its lifespan, and reduces unexpected downtime. Always follow your manufacturer’s recommendations for specific inspection and replacement intervals.
Can a Centrifugal Pump Operate in Both Vertical and Horizontal Positions?
Yes, you can operate a centrifugal pump in both vertical and horizontal positions, but it depends on the pump’s design and manufacturer specifications. Vertical pumps are often used in applications with space constraints or for handling corrosive fluids, while horizontal pumps are more common for ease of maintenance. Always consult the pump’s manual or manufacturer to guarantee proper operation and avoid damaging your equipment.
What Are the Signs of Seal Failure in a Centrifugal Pump?
Seal failure happens in about 25% of centrifugal pumps, signaling a serious issue. You might notice leaks around the pump, a drop in pressure, or increased vibration, which all point to seal problems. Over time, seals can wear out or get damaged due to contamination or misalignment. If you see these signs, it’s vital to address them quickly to prevent costly repairs or pump failure.
Conclusion
Understanding the anatomy of a centrifugal pump is like knowing the secret ingredients of a recipe—you’ll appreciate how each part works together to move fluid smoothly. From the volute to the impeller and seal, every component plays a essential role, ensuring efficiency and reliability. Once you see how these parts dance in harmony, you’ll realize that operating this pump is like conducting a well-orchestrated symphony—powerful, precise, and seamless.
